Plastic Sheets for Fluid Handling & Flow Control Components
In aggressive chemical environments, metal pumps, valves, and manifolds corrode, contaminate process media, and fail prematurely. This is why leading pump and valve manufacturers, semiconductor fabs, and chemical processing plants increasingly machine their critical wetted components from solid engineering plastic stock. At Zhi Hong Plastics, we supply premium cast and extruded plastic sheets, plates, and blocks engineered specifically as “blank stock” for CNC turning and milling into precision pump and valve parts.

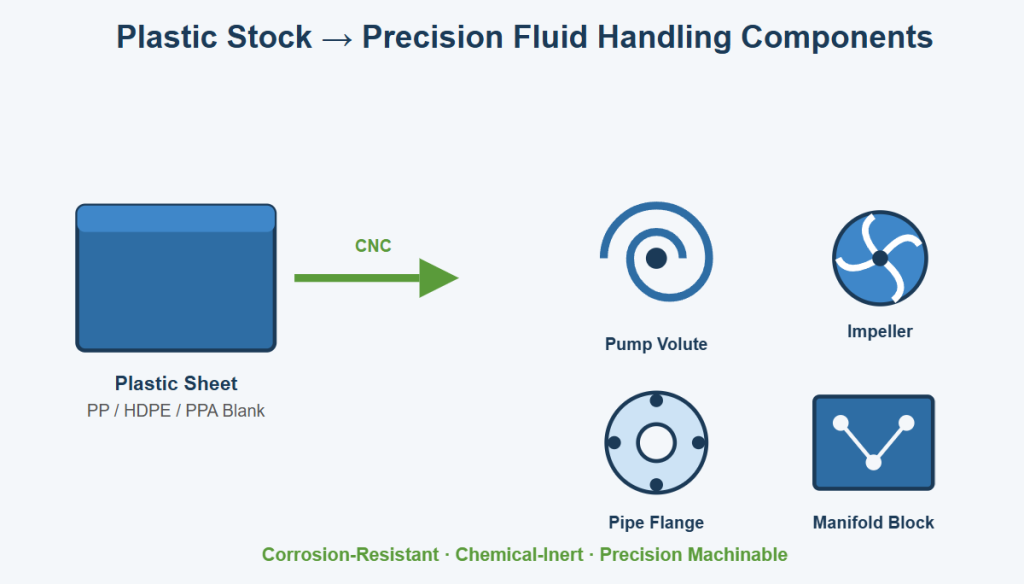

Plastic Stock → Precision Fluid Handling Components
Plastic Sheet PP / HDPE / PPA Blank
CNC
Pump Volute
Impeller
Pipe Flange
Manifold Block Corrosion-Resistant · Chemical-Inert · Precision Machinable
Our materials deliver outstanding corrosion resistance, chemical inertness, low friction, and dimensional stability — making them the ideal substitute for stainless steel, bronze, and exotic alloys in demanding fluid handling systems.
Why Machine Fluid Handling Components from Plastic?
- Superior Corrosion Resistance — Polypropylene (PP), HDPE, and PVDF withstand acids, alkalis, salts, and solvents that destroy metals.
- High Purity & Non-Contaminating — Critical for semiconductor and pharmaceutical fluids where metal ion leaching is unacceptable.
- Lightweight — Up to 6× lighter than steel, reducing system weight and mounting loads.
- Excellent Machinability — Our virgin-grade stock provides tight tolerances, smooth surface finishes, and minimal internal stress for stable CNC machining.
- Low Friction & Self-Lubrication — Reduces wear on impellers, seats, and moving valve elements.
Key Components Machined from Our Plastic Stock
Solid plastic plates and blocks are routinely supplied as “blank stock” to machining centers, where CNC lathes and mills transform them into precision pump and valve parts.
1. Corrosion-Resistant Pump Housings & Volutes
The main bodies of air-operated diaphragm pumps and centrifugal pumps are machined from thick PP and HDPE blocks. These materials resist continuous contact with corrosive process fluids while maintaining structural integrity under pressure. Recommended stock: Polypropylene Homopolymer (PPH) Sheet and HDPE PE100 Sheets.
2. Pump Impellers
The high-speed rotating core that drives chemical liquids. Impellers demand a material with high fatigue strength, dimensional stability, and chemical resistance. Our Polypropylene PP Sheet and Fiber-Reinforced Polypropylene Board (for added rigidity) are excellent choices.
3. Manifold Blocks / Chemical Distribution Valve Blocks
Complex internal flow channels are drilled into thick, solid plastic plates to create manifolds for precise fluid distribution in semiconductor and chemical plants. These require homogeneous, void-free stock. We recommend PPH Sheet and Polyphthalamide (PPA) Sheet for high-performance applications.
4. Valve Bodies & Seats
The corrosion-resistant bodies of diaphragm, ball, and butterfly valves. Valve seats benefit from low-friction, dimensionally stable plastics that ensure a leak-tight seal. Ideal materials include PP Sheet and HDPE Plate.
5. Pipe Flanges & Blind Flanges
Non-metallic fasteners that connect chemical piping systems. Plastic flanges eliminate galvanic corrosion and chemical attack at critical joints. Our HDPE PE100 Sheets and PPR Sheets (Polypropylene Random Copolymer) are widely used for flange machining in pressurized pipe systems.
Recommended Materials for Fluid Handling Applications
| Material | Key Properties | Best For |
|---|---|---|
| PPH Sheet | Excellent chemical resistance, weldable, high purity | Pump housings, manifold blocks, valve bodies |
| PP Sheet | Broad chemical resistance, good machinability | Impellers, valve seats, general components |
| HDPE PE100 | High pressure rating, impact resistant | Flanges, blind flanges, pump bodies |
| Fiber-Reinforced PP | Increased stiffness & strength | Load-bearing impellers, structural valve parts |
| PPA Sheet | High temperature & chemical performance | High-spec manifolds & precision parts |
| PPR Sheet | Hot/cold fluid stability, weldable | Pipe flanges, fluid transport fittings |
Specialty & Related Grades
Depending on your fluid chemistry, temperature, and regulatory requirements, you may also consider:
- Flame-Retardant PP Board — for fluid systems requiring fire-safety compliance.
- PE Flame-Retardant Sheet — flame-rated polyethylene option.
- Polypropylene Anti-Block (PPAB) Sheet — enhanced surface performance.
- PP Aquaculture Tank Sheet — for fluid storage and tank fabrication.
- FRPP Sheet — fiber-reinforced polypropylene for demanding environments.
- Marine-Grade HDPE Sheet — for marine and high-moisture fluid systems.
Custom Plastic Sheet Weight & Price Calculator
Estimate the weight and cost of your fluid handling component stock instantly. Simply enter your sheet dimensions and material below.
To have more accurate price,
you can use this unit converter to convert the inches unit to mm.
Why Choose Zhi Hong Plastics?
- Virgin-grade, void-free stock engineered for CNC machining accuracy.
- Custom thicknesses, sizes, and colors to match your machining requirements.
- Consistent quality with full material traceability.
- Global export experience serving pump, valve, and chemical processing OEMs worldwide.
Request a Quote
Tell us about your fluid handling component project — material grade, dimensions, and quantity — and our engineering team will respond promptly with a competitive quotation.
