High-Durability Plastic Sheets & Pre-Cut Blanks for Road Safety Signage
UV-stabilized, corona-treated, and precision CNC-routed plastic sign blanks. Streamline your traffic control production and commercial signage manufacturing with our ready-to-use Corrugated PP, Solid PP, Polycarbonate, and HDPE sheets engineered for extreme outdoor longevity.

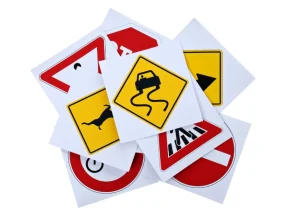

Traffic Signage: Why Advanced Plastics Lead the Way
In the highly regulated traffic management and commercial signage industry, the choice of substrate material is a critical decision that impacts total cost of ownership (TCO), safety compliance, and production efficiency. For decades, traditional materials like marine plywood and aluminum were the industry standards. However, these materials come with significant drawbacks. Plywood is prone to rotting, delamination, and water absorption when exposed to heavy rain. Aluminum, while durable, is expensive, heavy, and increasingly targeted by scrap metal thieves, leading to skyrocketing replacement costs for municipalities and traffic control companies.
This is where high-performance engineering plastics revolutionize the market. We manufacture extruded plastic sheets specifically formulated to solve these industry pain points. Our plastic signage substrates are inherently rust-proof, zero-water-absorption, incredibly lightweight, and hold zero scrap value for thieves. More importantly, we don’t just sell raw sheets; we act as your offshore manufacturing arm, providing precision pre-cut blanks that eliminate your local labor bottlenecks. Whether you are dealing with temporary roadworks in New Zealand, permanent highway signs in Australia, or commercial wayfinding in the UK, we have the exact material and fabrication capabilities to meet your local Department of Transport (DOT) standards.
Comprehensive Material Selection Guide for Traffic Control
Different signage applications require drastically different physical properties. Selecting the right substrate depends on the required lifespan, wind load resistance, environmental extremes, and your specific retroreflective sheeting requirements. Below is a detailed engineering breakdown of our core signage materials:
1. Corrugated Polypropylene (Corflute / Coroplast / Twin-Wall PP)
Corrugated PP is the undisputed king of temporary signage. Its hollow, twin-wall fluted structure makes it incredibly lightweight yet structurally rigid. It is the most cost-effective solution for short-term deployments.
- Standard Thicknesses & GSM: Available in 3mm, 4mm, 5mm, and 6mm. We specifically engineer the Grams per Square Meter (GSM) to match your wind-load needs. For example, our high-density 5mm 900 GSM boards offer superior stiffness compared to standard market alternatives, preventing the “bending” effect in high winds.
- Flute Direction Control: We can manufacture and cut your boards with specific flute directions. Vertical fluting is ideal for signs mounted on ground stakes (H-stakes), allowing the prongs to slide easily into the board. Horizontal fluting is often preferred for signs zip-tied to chain-link fences to prevent buckling.
- Applications: Temporary roadwork warnings, construction site perimeter fencing signs, event directions, real estate yard signs, and election campaign boards.

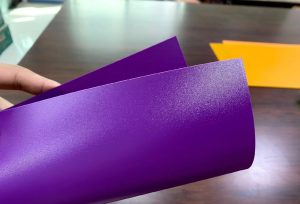

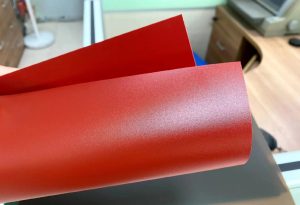

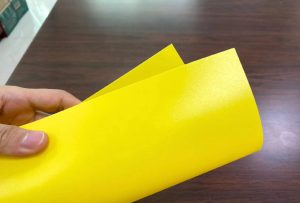

2. Solid Polypropylene Sheet (Solid PP)
When you need the durability of aluminum without the cost or theft risk, Solid PP is the ultimate substitute. It offers tremendous rigidity and tear resistance, making it ideal for medium to long-term outdoor exposure.
- Unmatched Wind Deflection Resistance: Standard Solid PP boards (typically 3mm, 4.5mm, or 6mm thick) have excellent tensile strength. When mounted on standard U-channel posts or steel poles, they resist excessive wind deflection, ensuring the reflective message remains visible to drivers at all times.
- Impact and Vandalism Resistance: Unlike brittle plastics or thin aluminum that dents permanently upon impact, Solid PP has a strong “memory” and impact resistance, allowing it to withstand flying debris, gravel kicked up by truck tires, and minor vehicle scrapes.
- Applications: Semi-permanent traffic control signs, supplementary warning plates (e.g., “NEXT 2km”), heavy-duty commercial wayfinding, and industrial safety notices.
3. Polycarbonate (PC) Solid Sheets
Polycarbonate is legendary for being virtually unbreakable—up to 250 times stronger than standard glass and 30 times stronger than acrylic. It is the premium choice for permanent and high-risk signage.
- Extreme Durability: Capable of withstanding extreme temperature fluctuations (from -40°C to +120°C) without cracking or losing its optical properties.
- Optical Clarity & Illumination: Available in crystal clear or opal white finishes, making it perfect for illuminated traffic bollards, traffic light lenses, and backlit commercial signs.
- Applications: Permanent highway signs, illuminated traffic signals, vandal-proof public signage, and protective covers for digital traffic displays.

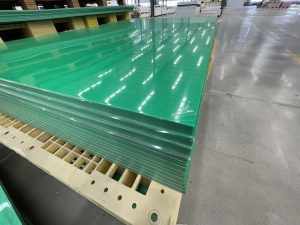

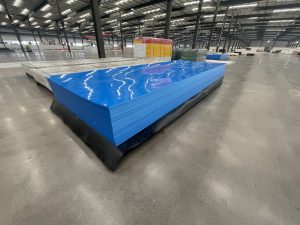

4. High-Density Polyethylene (HDPE)
For structural road safety products rather than flat signs, HDPE sheets provide unmatched cold-temperature impact resistance and heavy-duty structural integrity.
- Applications: Traffic barricades, heavy-duty road delineator posts, water-filled barrier structural components, and anti-glare screens mounted on highway median barriers.
The Science of Adhesion: Advanced Corona Treatment (42-46 Dyne)
One of the biggest challenges sign makers face when switching to Polypropylene (PP) is surface adhesion. By nature, PP has a very low surface energy (typically around 29-31 Dyne/cm). If you try to apply expensive Class 1 (Engineer Grade) or Diamond Grade retroreflective sheeting to raw PP, it will inevitably peel, bubble, or delaminate within months, especially under hot summer suns. Similarly, UV screen printing inks will fail to bond and easily scratch off.
To eliminate this failure point, we integrate a rigorous Corona Treatment process directly into our extrusion lines. High-voltage, high-frequency electrical discharges are passed over the surface of the plastic sheet. This process microscopically oxidizes the surface, breaking the molecular bonds and increasing the surface tension to an optimal 42 to 46 Dyne level.
The Result? Our treated Corflute and Solid PP blanks guarantee a permanent, destructive bond with all major adhesive films from brands like 3M, Avery Dennison, and Orafol. Your reflective sheeting will fail before the adhesive bond does. This treatment also ensures flawless ink reception for high-speed digital UV flatbed printing and traditional screen printing.
Advanced CNC Fabrication: Your Custom Sign Blank Partner
Why buy oversized sheets and waste expensive local labor on cutting? We operate a massive fleet of multi-head CNC routers, auto-tool changers, and heavy-duty flatbed die-cutting presses. We deliver finished blanks straight to your facility, ready for immediate vinyl application.
- Global Standard Dimensions: We routinely cut standard formats for the Oceanian, European, and North American markets. Common sizes include 750x750mm or 900x900mm diamonds (for temporary warnings), 300x900mm rectangular supplementary plates, and 600x600mm squares.
- Precision Routing & Burr-Free Edges: Our high-RPM CNC routers guarantee dimensional tolerances of ±0.5mm with incredibly smooth edges. No sharp burrs mean safer handling for your workers and a cleaner finish for the final sign.
- Radius Corners (R-Corners): Sharp 90-degree corners are a safety hazard on road signs. We can perfectly route radius corners (e.g., R30, R50, or R75) to meet strict DOT compliance regulations.
- Pre-Drilled Mounting Holes & Slots: We can pre-drill or punch perfectly aligned holes (e.g., 8mm or 10mm diameters) or elongated slots to match standard aluminum brackets, U-channel posts, and zip-tie configurations. Simply upload your CAD or PDF drawing, and we replicate it flawlessly.
Quality Assurance, UV Testing, and Supply Chain Excellence
When deploying thousands of traffic signs across a highway network, consistency is non-negotiable. Our production facilities adhere to strict ISO 9001 quality management protocols. Every batch of signage material undergoes rigorous testing, including accelerated weathering tests (ASTM G154) using UV fluorescent lamps to ensure our UV-stabilizer additives perform flawlessly over years of outdoor exposure.
Logistics & Mixed Container Loads (LCL/FCL): We understand the complex procurement needs of traffic management companies. You don’t need to order massive quantities of a single size. We highly encourage Mixed Container Loads. You can combine a pallet of 4mm Corflute blanks, a pallet of 4.5mm Solid PP cut-to-size plates, and a batch of Polycarbonate sheets in a single 20ft or 40ft container. All custom blanks are securely packed on export-grade, fumigation-free wooden pallets, wrapped with heavy-duty stretch film and edge protectors to ensure zero transit damage.
Frequently Asked Questions (Traffic & Signage Plastics)
1. Can I apply Class 1 or Diamond Grade reflective sheeting directly to your Solid PP boards?
Yes, absolutely. Because our signage-grade Solid PP and Corrugated PP sheets are rigorously Corona Treated (achieving 42-46 Dyne), they offer exceptional surface energy. This guarantees a strong, permanent bond with all major retroreflective films (like 3M or Avery Dennison) without the need for expensive chemical primers or surface flaming.
2. What is the expected outdoor lifespan of your plastic sign blanks?
Lifespan heavily depends on the material chosen and the geographic UV index. Our standard Corflute is designed for 1-2 years of temporary outdoor use. Our UV-stabilized Solid PP is engineered for 3 to 5 years of medium-term deployment, while our premium Polycarbonate sheets can easily exceed 7 to 10 years without significant yellowing or embrittlement.
3. Do you have an MOQ (Minimum Order Quantity) for custom-routed sign shapes?
As a direct source manufacturer, our MOQ is highly flexible. Instead of restricting you to high volumes of a single SKU, we base our MOQs on overall material weight or volume. We specialize in mixed orders, allowing you to consolidate various dimensions (e.g., diamonds, rectangles, and custom contour cuts) into one cost-effective shipment.
4. What is the difference between Corflute (Corrugated PP) and Solid PP for road works?
Corflute is incredibly lightweight, easy to carry, and highly economical, making it the global standard for short-term, temporary traffic warnings, events, and detours. Solid PP is significantly heavier, completely rigid, and highly resistant to wind deflection. It is the superior choice for semi-permanent roadworks, high-wind areas, or prolonged construction projects where a corrugated board might eventually buckle.
5. How do you package pre-cut sign blanks to prevent edge damage during sea freight?
Pre-cut blanks are stacked flat and banded onto reinforced, export-compliant wooden pallets. We use rigid cardboard or plastic edge protectors on all four corners of the stack, and the entire pallet is tightly machine-wrapped in shrink film. This guarantees the edges remain pristine and the boards stay perfectly flat upon arrival at your warehouse.
6. Can you manufacture sheets in custom colors other than standard white or black?
Yes. While high-opacity white is the industry standard for reflective sign backing, we can custom-extrude Solid PP and Corflute in high-visibility orange, traffic yellow, safety green, or any specific Pantone/RAL color matching your corporate or municipal branding requirements. Minimum order quantities apply for custom color runs.
