Plastic Sheets for Filtration & Separation Equipment
In chemical processing, filtration and separation are among the most demanding applications a material can face. Equipment is exposed to aggressive acids, alkalis, abrasive slurries, and continuous mechanical stress. Zhi Hong Plastics manufactures premium PP and HDPE plastic sheets and thick plates engineered specifically for filtration and separation systems — delivering outstanding corrosion resistance, dimensional stability, and machinability for the world’s leading equipment fabricators.
From thick filter press plates to abrasion-resistant centrifuge liners, our materials are trusted across the chemical, mining, wastewater, and food-processing industries for reliable solid-liquid separation performance.
Why PP & HDPE Are Ideal for Filtration & Separation
Polypropylene (PP) and high-density polyethylene (HDPE) have become the materials of choice for filtration equipment thanks to a unique combination of properties:
- Exceptional Chemical Resistance: Both resist a broad spectrum of acids, alkalis, salts, and solvents without degrading, swelling, or cracking.
- Low Moisture Absorption: Ensures dimensional stability even under continuous wet-process conditions.
- High Abrasion Resistance: HDPE in particular withstands abrasive slurries and particulate-laden flows.
- Excellent Machinability: Easily CNC-milled, drilled, and routed to create complex drainage channels and perforations.
- Cost-Effective & Long Service Life: Lower lifetime cost than stainless steel or coated metals in corrosive service.
- Food & Hygienic Compliance: Available in grades suitable for food, beverage, and pharmaceutical filtration.
Filtration & Separation Components We Support

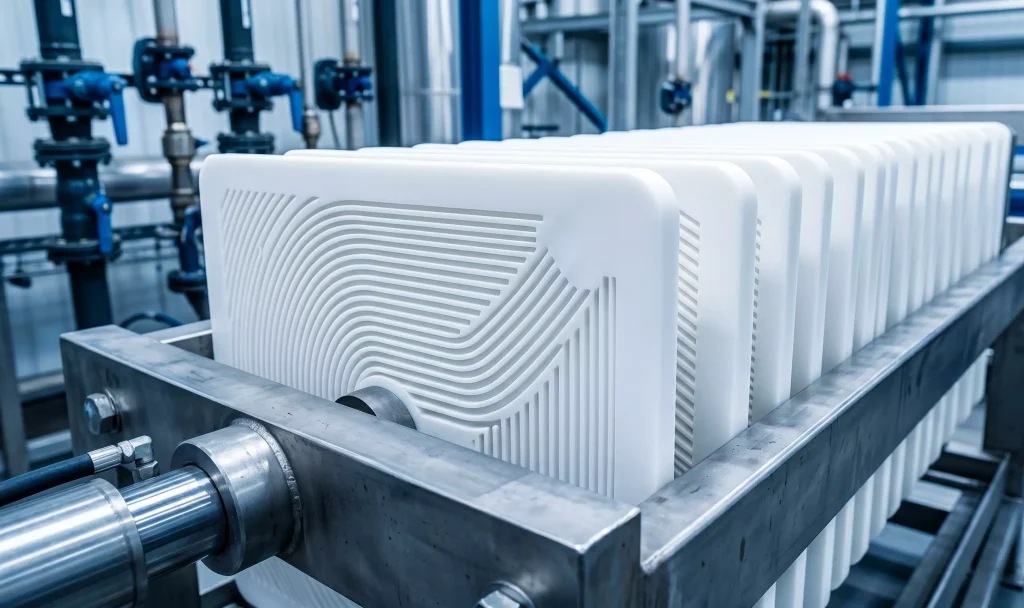

1. Filter Press Plates
Filter press plates are one of the most material-intensive components in the entire filtration industry, consuming thick plates typically ranging from 30 mm to 100 mm or more. CNC-precision drainage grooves are machined into the surface to channel filtrate while retaining the solid filter cake — making them essential for chemical sludge dewatering and solid-liquid separation.
For these heavy-duty plates, we recommend our Polypropylene Homopolymer (PPH) Sheet for its rigidity and chemical resistance, or our durable HDPE Plate (High Density Polyethylene Plate) where high abrasion resistance is critical. Where superior strength and reduced warpage are required, our Fiber Reinforced Polypropylene Board provides added structural integrity for large-format plates.
2. Centrifuge Liners
Inside chemical centrifuges, protective liners shield critical components from both abrasion and corrosion. The constant high-speed rotation and contact with aggressive slurries demand a material with an exceptional combination of wear resistance and chemical inertness.
Our HDPE PE100 Sheets are ideally suited for this role, offering a low-friction, abrasion-resistant surface that significantly extends equipment service intervals. For applications requiring maximum impact and wear protection, our high-performance HDPE Sheet (High Density Polyethylene) is a proven solution.
3. Demister Frames
Demister (mist eliminator) frames hold the wire mesh that captures entrained liquid droplets from vapor streams in scrubbers and separation columns. These frames must withstand continuous exposure to corrosive vapors and condensates while maintaining structural rigidity.
Our Polypropylene (PP) Sheet delivers the acid- and alkali-resistant performance required for these frames. In environments where fire safety regulations apply, our Flame Retardant PP Board provides the same chemical protection with added flame-retardant compliance.
4. Strainer Baskets
Strainer baskets are the perforated components within pipeline coarse filters that intercept chemical impurities and debris before they reach downstream equipment. They require precise perforation machining and reliable resistance to the process media flowing through the line.
For corrosion-resistant strainer baskets, our FRPP Sheet combines chemical resistance with enhanced rigidity, while standard-grade HDPE Sheet offers an economical, durable option for less aggressive service.
Recommended Material Grades
| Component | Recommended Material | Key Benefit |
|---|---|---|
| Filter Press Plates | PPH / HDPE Thick Plate / FRPP | Rigidity, machinable drainage grooves |
| Centrifuge Liners | HDPE PE100 | Abrasion & corrosion resistance |
| Demister Frames | PP Sheet / Flame Retardant PP | Acid/alkali resistance, fire safety |
| Strainer Baskets | FRPP / HDPE Sheet | Chemical resistance, easy perforation |
Explore our full PP Sheet Series and PE Sheet Series to find the right grade for your filtration project. For chemical compatibility data, see our guide on the chemical resistance testing of our materials.
Custom Fabrication & CNC Machining
We don’t just supply raw sheet — we support your fabrication needs. Our capabilities include:
- Thick plate extrusion from 30 mm to 100 mm+ for filter press applications
- Precision CNC milling of drainage channels and grooves
- Custom cut-to-size sheets and plates to your exact specifications
- Drilling and perforation for strainer and basket components
- Welding-ready surfaces for fabricated assemblies
Learn more about our plastic sheet cut-to-size services and how we deliver tailored solutions for industrial filtration projects.
Calculate Your Plastic Sheet Weight & Price
Get an instant estimate for your filtration plates and components using our custom weight calculator below. To have more accurate price,
you can use this unit converter to convert the inches unit to mm.
Request a Quote
Ready to source high-performance filtration and separation materials? Contact our engineering team for technical guidance, samples, and competitive wholesale pricing. As an established plastic sheet manufacturer, Zhi Hong Plastics is your trusted partner for chemical-grade PP and HDPE solutions.
To explore more chemical industry applications, visit our full product catalog or contact us directly.
