You must know HDPE sheet thickness to choose the correct material. A chart and guide lets you choose thicknesses for industrial, commercial, and personal needs. Is there a standard HDPE sheet thickness range? How does thickness affect durability? Precision is ensured by accurate measurement and comparison using instruments such as a HDPE sheet thickness calculator. This post from Zhihong Plastics will provide all the information you need on applications and standards.

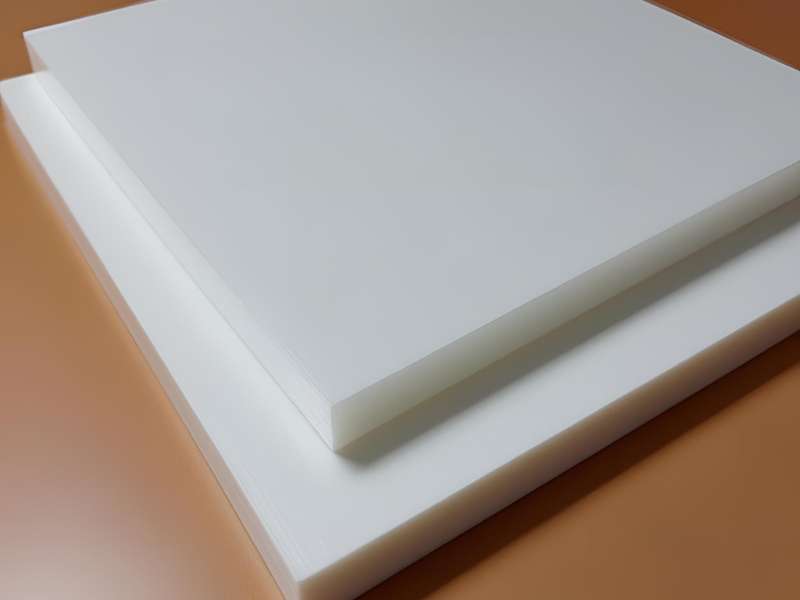

Knowing HDPE Sheet Thickness
HDPE sheet thickness affects its performance and appropriateness in various applications. The ranges from light, flexible sheets to thick, industrial-grade panels. These variations let users choose the right thickness for efficiency and durability. The standard ensures quality and industry conformity. Standards enable manufacturers produce sheets with precise dimensions.
Accuracy is important when it comes to measurement. Technicians use micrometers or calipers to measure thickness. They place the tool on the sheet and measure it where it closes. For small and large projects, consistent measurements across production batches ensure sheets fulfill tolerances. Understanding these necessaries simplifies material selection and use for various purposes.
Thickness and Material Properties of HDPE Sheet
Material characteristics and performance depend on specifications. Thick sheets are strong and impact-resistant, while thinner ones are flexible. The sheet’s capacity to tolerate UV light and chemicals is also specified. Maintaining consistency across projects requires correct tolerance during manufacturing to ensure dimensional precision. Tolerance precision allows easy integration into various systems and structures.
Thickness determines HDPE sheet durability. Industries needing long-term reliability prefer thicker sheets. These sheets resist wear and tear more effectively. Thinner sheets may disintegrate faster in stressful conditions. Cracking or distortion under load can be avoided by choosing the right thickness. The durability and consistent machining tolerances allow users to optimize performance for project needs. Such adaptability emphasizes the need of understanding thickness-durability relationships when choosing materials.
Common Uses From HDPE Sheet Thickness
Different industries use HDPE sheet thicknesses for different applications. Packaging, liners, and lightweight coverings benefit from thinner sheets under 1/8 inch. Use these sheets for pliability and easy handling. However, medium-thickness sheets are employed for signage. Thick sheets above 1 inch are strong and stable for heavy-duty applications. Construction, structural components, and industrial containment systems use these sheets for load-bearing capacity.
A thorough HDPE sheet thickness comparison shows how customized dimensions benefit specific sectors. Farms employ thin sheets for crop covers and medium sheets for water tanks. Contractors favor thick HDPE sheets for retaining walls, ground stabilization, and concrete molds. Marine dock fenders and boat parts need stronger sheets for chemical protection and endurance. These examples demonstrate how applications can be tailored to specific operational needs. Selecting correctly provides usefulness and long-term performance for many uses.
Accurate HDPE Sheet Thickness Measurement Tools
Ensure sheets fulfill application requirements with accurate measurement. By physically measuring the distance between two sheet points, calipers and micrometers make accurate measurements. These technologies measure thickness within a fraction of a millimeter and are highly dependable. Non-invasive ultrasonic thickness gauges are ideal for thicker sheets or materials already in place for advanced measurements. These equipment are calibrated to assure measurement uniformity.
The calculator simplifies selection and evaluation, especially for various standards or engineering designs. This automated tool lets customers enter project data like anticipated load, application type, and climatic variables to find the best thickness. Engineers and producers may make better decisions with precise measurement findings and calculating insights. This instrument reduces material waste and optimizes performance for long-term use by matching thickness to project requirements.
Zhihong Plastics specializes in providing HDPE sheets with precise thickness options tailored to meet diverse industrial and commercial needs. We prioritize customer satisfaction by delivering innovative solutions designed to enhance efficiency and long-term success. Trust us as your supplier for HDPE sheets, and experience unmatched quality and service for your material requirements.
At the upper end of the thickness range, 1 inch HDPE sheet weight and 4×8 panel logistics become critical — a single pallet of twenty sheets exceeds 1.4 metric tons, directly affecting freight quotes and container planning.
For a complete breakdown of what affects sheet pricing, see our HDPE sheet cost guide.
Deep-Dive Technical Notes1 Inch HDPE Sheet: 25.4mm Specifications, Weight &amp and Machining
Dimensional Metrics: 25.4mm Thickness & Tolerances
Not all "1 inch" sheets measure the same. Under compression-molding standards like DIN ISO 15014, mold-pressed 1 inch panels typically ship with a +0.5mm to +1.8mm tolerance – slightly over-thick to allow for double-sided machining. Precision-ground plate, planed flat on both faces with a gantry planer, holds tolerances as tight as ±0.2mm. Beyond thickness, compressive strength matters just as much. A solid 1 inch HDPE panel offers a compressive yield strength above 25 MPa, letting it absorb repeated crushing loads from truck outriggers or pump-truck legs without cracking or crumbling. Compare this with standard HDPE plate specifications, where thickness and compressive modulus dictate whether the part survives the first load cycle or fails catastrophically. Cross-section of a void-free compression-molded HDPE panel showing uniform density from skin to core – no internal cavities or shrinkage defects.
Void-Free Molding vs. Heavy Extrusion
HDPE conducts heat roughly 200 times slower than steel. When continuous extrusion lines produce 1 inch stock, the outer skin cools and hardens first while the core stays hot. As that core eventually cools, it shrinks by more than 10% in volume – and without adequate pressure, this creates microscopic voids inside the plate. Those hidden cavities go unnoticed until a CNC pocket cuts straight through one, ruining the part. Compression molding solves this differently. Resin is fully plasticized at high temperature, then held under pressure through a slow, graduated cooling cycle – often 12 hours – followed by a secondary stress-relief anneal near 100°C. This process eliminates the internal shrinkage defects common in standard extruded polyethylene sheets, producing a genuinely solid core suitable for structural use.
Deep Cavity Machining Practices
Milling thick HDPE generates heat fast, and trapped chips can re-melt and gum up a cutter. Roughing passes call for large-flute carbide end mills running 10,000-14,000 RPM, with depth of cut limited to 6-8mm per pass and air-assisted chip evacuation to keep the cut cool. Deep holes need similar care – a polished high-speed steel drill ground to a 110°-118° point angle, run in peck cycles that retract every 5mm to clear chips. For mold bases and heavy pocketing work, shops offering deep cavity CNC milling with proper feed control avoid the melted, glazed cut walls that plague underpowered setups. A CNC router executing a deep cavity milling pass on a 1 inch HDPE sheet with carbide tooling and air-assisted chip evacuation.
Weight Math and Logistics
A standard 4ft x 8ft x 1in sheet (1220mm x 2440mm x 25.4mm) has a volume of 0.0756 m³. At 960 kg/m³, that works out to roughly 72.6 kg, or about 160 lbs per sheet. Stack twenty sheets on a pallet and you're shipping over 1.4 metric tons – a number that matters for freight quotes and container loading plans. For quick conversions between imperial and metric callouts, our plastic sheet weight calculator handles instant unit conversion and weight estimation. To estimate the exact weight of custom-cut parts before ordering, the same calculator module covers HDPE, PP, and other engineering polymers. For full container and pallet weight planning, run your numbers through the calculator before finalizing freight. A stack of 1 inch thick HDPE sheets prepared for freight – a standard 20-sheet pallet exceeds 1.4 metric tons.
Heavy-Duty Applications
Three uses dominate demand for this gauge: Crane outrigger pads – machined with lifting slots and anti-slip grooves to spread multi-ton point loads across soft ground. Flange spacers and insulating gaskets – resistant to corrosive acids and process chemicals. Wear shoes on mining and heavy equipment , where abrasion resistance outlasts steel skids. Many of these applications overlap with HDPE ground protection mats , where thickness determines load distribution capacity. Before specifying a supplier, compare their calibrated sheet thickness specifications against your tolerance requirements – the difference between mold-pressed and precision-planed stock affects both fit and cost. Understanding the best practices for machining HDPE before ordering also prevents costly rework after delivery. A 1 inch thick HDPE crane outrigger pad with machined lifting slot and anti-slip grooves, designed to distribute multi-ton ground loads. Heavy-duty HDPE wear shoe for mining equipment, where 1 inch stock provides the abrasion resistance that outlasts steel skids.
Thin-gauge sheets are also the starting point for HDPE vacuum forming of shallow parts — see our forming guide for temperature and method selection.
